4장 - 유용한 선형회귀

4.1 선형회귀의 필요성

4.1.1 모델이 필요한 이유

import warnings

warnings.filterwarnings("ignore")

import pandas as pd
import numpy as np
import graphviz as gr
from matplotlib import style
import seaborn as sns
from matplotlib import pyplot as plt

style.use("ggplot")
import statsmodels.formula.api as smf
from cycler import cycler

default_cycler = cycler(color=["0.3", "0.5", "0.7", "0.5"])

color = ["0.3", "0.5", "0.7", "0.9"]
linestyle = ["-", "--", ":", "-."]
marker = ["o", "v", "d", "p"]

plt.rc("axes", prop_cycle=default_cycler)

gr.set_default_format("png");

g_risk = gr.Digraph(graph_attr={"rankdir": "LR"})

g_risk.edge("Risk", "X")
g_risk.edge("X", "Credit Limit")
g_risk.edge("X", "Default")
g_risk.edge("Credit Limit", "Default")

g_risk

4.1.2 A/B 테스트와 회귀분석

무작위 실험인 A/B 테스트 결과를 분석할 때도 선형회귀를 사용하면 더 정밀한 추정치를 얻을 수 있습니다.

data = pd.read_csv("../data/rec_ab_test.csv")
data.head()

	recommender	age	tenure	watch_time
0	challenger	15	1	2.39
1	challenger	27	1	2.32
2	benchmark	17	0	2.74
3	benchmark	34	1	1.92
4	benchmark	14	1	2.47

result = smf.ols("watch_time ~ C(recommender)", data=data).fit()

result.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	2.0491	0.058	35.367	0.000	1.935	2.163
C(recommender)[T.challenger]	0.1427	0.095	1.501	0.134	-0.044	0.330

(data.groupby("recommender")["watch_time"].mean())

recommender
benchmark     2.049064
challenger    2.191750
Name: watch_time, dtype: float64

4.1.3 회귀분석을 통한 보정

관측 데이터에서 발생할 수 있는 교란 요인들을 회귀 모델에 포함시켜 통제함으로써 인과 관계에 더 가까운 결과를 얻습니다.

risk_data = pd.read_csv("../data/risk_data.csv")

risk_data.head()

	wage	educ	exper	married	credit_score1	credit_score2	credit_limit	default
0	950.0	11	16	1	500.0	518.0	3200.0	0
1	780.0	11	7	1	414.0	429.0	1700.0	0
2	1230.0	14	9	1	586.0	571.0	4200.0	0
3	1040.0	15	8	1	379.0	411.0	1500.0	0
4	1000.0	16	1	1	379.0	518.0	1800.0	0

model = smf.ols("default ~ credit_limit", data=risk_data).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.2192	0.004	59.715	0.000	0.212	0.226
credit_limit	-2.402e-05	1.16e-06	-20.689	0.000	-2.63e-05	-2.17e-05

plt_df = (
    risk_data.assign(size=1)
    .groupby("credit_limit")
    .agg({"default": "mean", "size": sum})
    .reset_index()
    .assign(prediction=lambda d: model.predict(d))
)

plt.figure(figsize=(10, 4))

sns.scatterplot(data=plt_df, x="credit_limit", y="default", size="size", sizes=(1, 100))

plt.plot(plt_df["credit_limit"], plt_df["prediction"], color="C1")

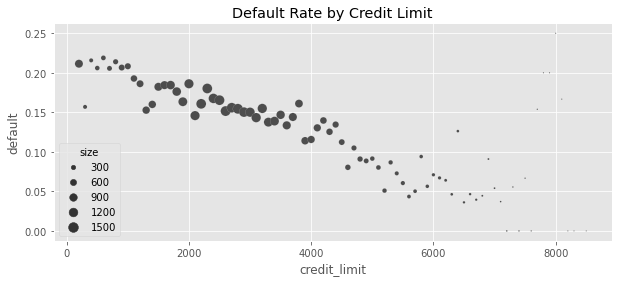

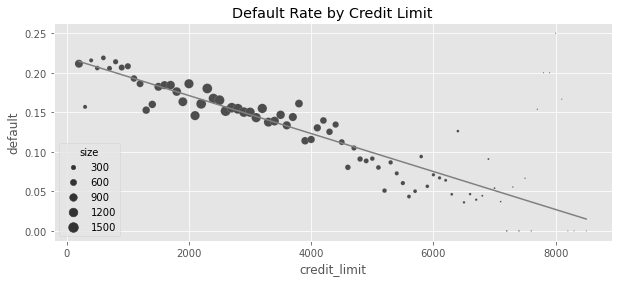

plt.title("Default Rate by Credit Limit")

Text(0.5, 1.0, 'Default Rate by Credit Limit')

risk_data.groupby(["credit_score1", "credit_score2"]).size().head()

credit_score1  credit_score2
34.0           339.0            1
               500.0            1
52.0           518.0            1
69.0           214.0            1
               357.0            1
dtype: int64

formula = "default ~ credit_limit + wage+credit_score1+credit_score2"
model = smf.ols(formula, data=risk_data).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.4037	0.009	46.939	0.000	0.387	0.421
credit_limit	3.063e-06	1.54e-06	1.987	0.047	4.16e-08	6.08e-06
wage	-8.822e-05	6.07e-06	-14.541	0.000	-0.000	-7.63e-05
credit_score1	-4.175e-05	1.83e-05	-2.278	0.023	-7.77e-05	-5.82e-06
credit_score2	-0.0003	1.52e-05	-20.055	0.000	-0.000	-0.000

4.2 회귀분석 이론

X_cols = ["credit_limit", "wage", "credit_score1", "credit_score2"]
X = risk_data[X_cols].assign(intercep=1)
y = risk_data["default"]


def regress(y, X):
    return np.linalg.inv(X.T.dot(X)).dot(X.T.dot(y))


beta = regress(y, X)
beta

array([ 3.06252773e-06, -8.82159125e-05, -4.17472814e-05, -3.03928359e-04,
        4.03661277e-01])

4.2.1 단순선형회귀

4.2.2 다중선형회귀

4.3 프리슈-워-로벨 정리와 직교화

formula = "default ~ credit_limit + wage+credit_score1+credit_score2"
model = smf.ols(formula, data=risk_data).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.4037	0.009	46.939	0.000	0.387	0.421
credit_limit	3.063e-06	1.54e-06	1.987	0.047	4.16e-08	6.08e-06
wage	-8.822e-05	6.07e-06	-14.541	0.000	-0.000	-7.63e-05
credit_score1	-4.175e-05	1.83e-05	-2.278	0.023	-7.77e-05	-5.82e-06
credit_score2	-0.0003	1.52e-05	-20.055	0.000	-0.000	-0.000

4.3.1 편향 제거 단계

plt_df = (
    risk_data.assign(size=1)
    .groupby("credit_limit")
    .agg({"default": "mean", "size": sum})
    .reset_index()
)

plt.figure(figsize=(10, 4))
sns.scatterplot(data=plt_df, x="credit_limit", y="default", size="size", sizes=(1, 100))


plt.title("Default Rate by Credit Limit")

Text(0.5, 1.0, 'Default Rate by Credit Limit')

debiasing_model = smf.ols(
    "credit_limit ~ wage + credit_score1  + credit_score2", data=risk_data
).fit()

risk_data_deb = risk_data.assign(
    # for visualization, avg(T) is added to the residuals
    credit_limit_res=(debiasing_model.resid + risk_data["credit_limit"].mean())
)

model_w_deb_data = smf.ols("default ~ credit_limit_res", data=risk_data_deb).fit()

model_w_deb_data.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.1421	0.005	30.001	0.000	0.133	0.151
credit_limit_res	3.063e-06	1.56e-06	1.957	0.050	-4.29e-09	6.13e-06

plt_df = (
    risk_data_deb.assign(size=1)
    .assign(credit_limit_res=lambda d: d["credit_limit_res"].round(-2))
    .groupby("credit_limit_res")
    .agg({"default": "mean", "size": sum})
    .query("size>30")
    .reset_index()
)

plt.figure(figsize=(10, 4))
sns.scatterplot(
    data=plt_df, x="credit_limit_res", y="default", size="size", sizes=(1, 100)
)

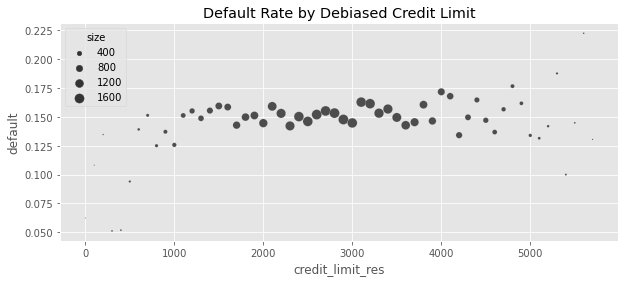

plt.title("Default Rate by Debiased Credit Limit")

Text(0.5, 1.0, 'Default Rate by Debiased Credit Limit')

4.3.2 잡음 제거 단계

denoising_model = smf.ols(
    "default ~ wage + credit_score1  + credit_score2", data=risk_data_deb
).fit()

risk_data_denoise = risk_data_deb.assign(
    default_res=denoising_model.resid + risk_data_deb["default"].mean()
)

4.3.3 회귀 추정량의 표준오차

model_se = smf.ols(
    "default ~ wage + credit_score1  + credit_score2", data=risk_data
).fit()

print("SE regression:", model_se.bse["wage"])


model_wage_aux = smf.ols("wage ~ credit_score1 + credit_score2", data=risk_data).fit()

# subtract the degrees of freedom - 4 model parameters - from N.
se_formula = np.std(model_se.resid) / (
    np.std(model_wage_aux.resid) * np.sqrt(len(risk_data) - 4)
)

print("SE formula:   ", se_formula)

SE regression: 5.364242347548197e-06
SE formula:    5.364242347548201e-06

4.3.4 최종 결과 모델

model_w_orthogonal = smf.ols(
    "default_res ~ credit_limit_res", data=risk_data_denoise
).fit()

model_w_orthogonal.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.1421	0.005	30.458	0.000	0.133	0.151
credit_limit_res	3.063e-06	1.54e-06	1.987	0.047	4.17e-08	6.08e-06

plt_df = (
    risk_data_denoise.assign(size=1)
    .assign(credit_limit_res=lambda d: d["credit_limit_res"].round(-2))
    .groupby("credit_limit_res")
    .agg({"default_res": "mean", "size": sum})
    .query("size>30")
    .reset_index()
    .assign(prediction=lambda d: model_w_orthogonal.predict(d))
)

plt.figure(figsize=(10, 4))
sns.scatterplot(
    data=plt_df, x="credit_limit_res", y="default_res", size="size", sizes=(1, 100)
)

plt.plot(plt_df["credit_limit_res"], plt_df["prediction"], c="C1")

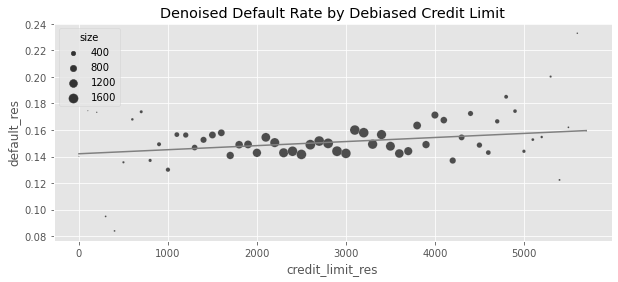

plt.title("Denoised Default Rate by Debiased Credit Limit")

Text(0.5, 1.0, 'Denoised Default Rate by Debiased Credit Limit')

4.3.5 FWL 정리 요약

4.4 결과 모델으로서의 회귀분석

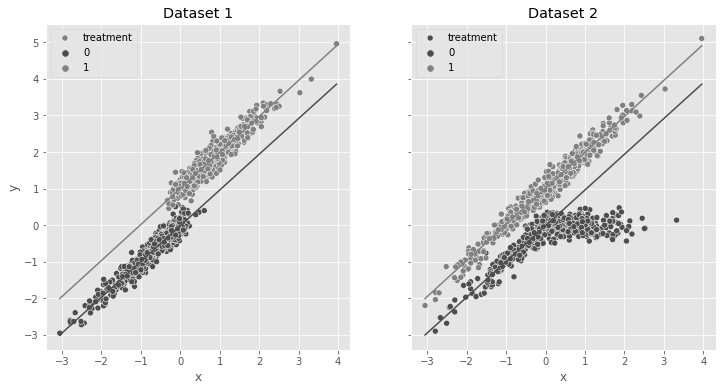

4.5 양수성과 외삽

np.random.seed(42)

n = 1000
x = np.random.normal(0, 1, n)
t = np.random.normal(x, 0.2, n) > 0

y0 = x
y1 = 1 + x

y = np.random.normal((1 - t) * y0 + t * y1, 0.2)

df_no_pos = pd.DataFrame(dict(x=x, t=t.astype(int), y=y))

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 6), sharey=True)

sns.scatterplot(data=df_no_pos, x="x", y="y", hue="t", ax=ax1, label="treatment")

m0 = smf.ols("y~x", data=df_no_pos.query("t==0")).fit()
m1 = smf.ols("y~x", data=df_no_pos.query("t==1")).fit()

sns.lineplot(
    data=df_no_pos.assign(pred=m0.predict(df_no_pos)),
    x="x",
    y="pred",
    color="C0",
    ax=ax1,
)
sns.lineplot(
    data=df_no_pos.assign(pred=m1.predict(df_no_pos)),
    x="x",
    y="pred",
    color="C1",
    ax=ax1,
)
ax1.set_title("Dataset 1")

np.random.seed(42)

n = 1000
x = np.random.normal(0, 1, n)
t = np.random.binomial(1, 0.5, size=n)

y0 = x * (x < 0) + (x > 0) * 0
y1 = 1 + x

y = np.random.normal((1 - t) * y0 + t * y1, 0.2)

df_pos = pd.DataFrame(dict(x=x, t=t.astype(int), y=y))

sns.scatterplot(data=df_pos, x="x", hue="t", y="y", ax=ax2, label="treatment")

sns.lineplot(
    data=df_no_pos.assign(pred=m0.predict(df_pos)), x="x", y="pred", color="C0", ax=ax2
)
sns.lineplot(
    data=df_no_pos.assign(pred=m1.predict(df_pos)), x="x", y="pred", color="C1", ax=ax2
)
ax2.set_title("Dataset 2")

Text(0.5, 1.0, 'Dataset 2')

4.6 선형회귀에서의 비선형성

spend_data = pd.read_csv("../data/spend_data.csv")

spend_data.head()

	wage	educ	exper	married	credit_score1	credit_score2	credit_limit	spend
0	950.0	11	16	1	500.0	518.0	3200.0	3848
1	780.0	11	7	1	414.0	429.0	1700.0	3144
2	1230.0	14	9	1	586.0	571.0	4200.0	4486
3	1040.0	15	8	1	379.0	411.0	1500.0	3327
4	1000.0	16	1	1	379.0	518.0	1800.0	3508

g_risk = gr.Digraph(graph_attr={"rankdir": "LR"})

g_risk.edge("Wage", "Credit Limit")
g_risk.edge("Wage", "Spend")
g_risk.edge("Credit Limit", "Spend")

g_risk

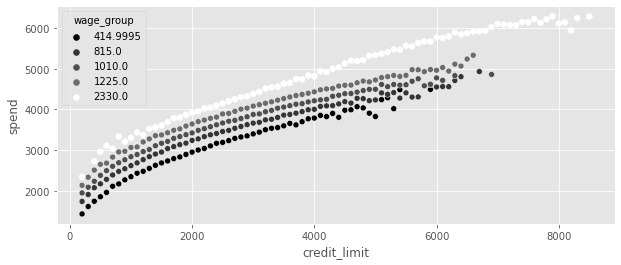

plt_df = (
    spend_data.assign(wage_group=lambda d: pd.IntervalIndex(pd.qcut(d["wage"], 5)).mid)
    .groupby(["wage_group", "credit_limit"])[["spend"]]
    .mean()
    .reset_index()
)

plt.figure(figsize=(10, 4))
sns.scatterplot(
    data=plt_df, x="credit_limit", y="spend", hue="wage_group", palette="gray"
)

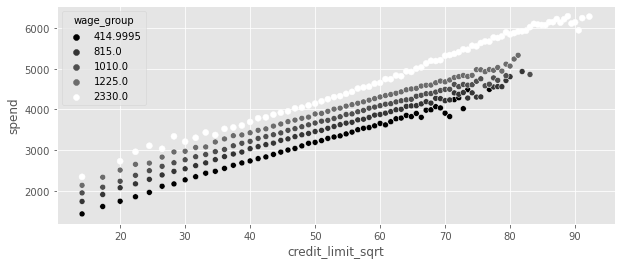

4.6.1 처치 선형화

plt_df = (
    spend_data
    # apply the sqrt function to the treatment
    .assign(credit_limit_sqrt=np.sqrt(spend_data["credit_limit"]))
    # create 5 wage binds for better vizualization
    .assign(wage_group=pd.IntervalIndex(pd.qcut(spend_data["wage"], 5)).mid)
    .groupby(["wage_group", "credit_limit_sqrt"])[["spend"]]
    .mean()
    .reset_index()
)

plt.figure(figsize=(10, 4))
sns.scatterplot(
    data=plt_df, x="credit_limit_sqrt", y="spend", palette="gray", hue="wage_group"
)

model_spend = smf.ols("spend ~ np.sqrt(credit_limit)", data=spend_data).fit()

model_spend.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	493.0044	6.501	75.832	0.000	480.262	505.747
np.sqrt(credit_limit)	63.2525	0.122	519.268	0.000	63.014	63.491

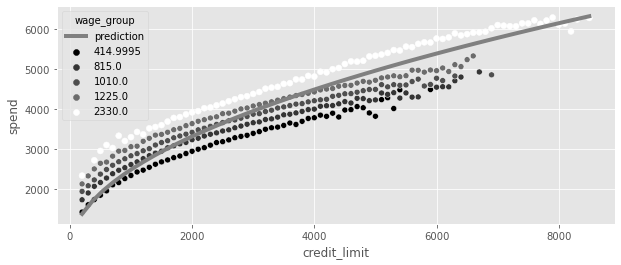

plt_df = (
    spend_data.assign(wage_group=lambda d: pd.IntervalIndex(pd.qcut(d["wage"], 5)).mid)
    .groupby(["wage_group", "credit_limit"])[["spend"]]
    .mean()
    .reset_index()
)

x = np.linspace(plt_df["credit_limit"].min(), plt_df["credit_limit"].max())

plt.figure(figsize=(10, 4))
plt.plot(
    x,
    model_spend.params[0] + model_spend.params[1] * np.sqrt(x),
    color="C1",
    label="prediction",
    lw=4,
)
plt.legend()
sns.scatterplot(
    data=plt_df, x="credit_limit", y="spend", palette="gray", hue="wage_group"
)

model_spend = smf.ols("spend ~ np.sqrt(credit_limit)+wage", data=spend_data).fit()

model_spend.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	383.5002	2.746	139.662	0.000	378.118	388.882
np.sqrt(credit_limit)	43.8504	0.065	672.633	0.000	43.723	43.978
wage	1.0459	0.002	481.875	0.000	1.042	1.050

4.6.2 비선형 FWL과 편향 제거

debias_spend_model = smf.ols("np.sqrt(credit_limit) ~ wage", data=spend_data).fit()
denoise_spend_model = smf.ols("spend ~ wage", data=spend_data).fit()


credit_limit_sqrt_deb = (
    debias_spend_model.resid + np.sqrt(spend_data["credit_limit"]).mean()
)
spend_den = denoise_spend_model.resid + spend_data["spend"].mean()


spend_data_deb = spend_data.assign(
    credit_limit_sqrt_deb=credit_limit_sqrt_deb, spend_den=spend_den
)

final_model = smf.ols("spend_den ~ credit_limit_sqrt_deb", data=spend_data_deb).fit()

final_model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	1493.6990	3.435	434.818	0.000	1486.966	1500.432
credit_limit_sqrt_deb	43.8504	0.065	672.640	0.000	43.723	43.978

plt_df = (
    spend_data.assign(wage_group=lambda d: pd.IntervalIndex(pd.qcut(d["wage"], 5)).mid)
    .groupby(["wage_group", "credit_limit"])[["spend"]]
    .mean()
    .reset_index()
)

x = np.linspace(plt_df["credit_limit"].min(), plt_df["credit_limit"].max())

plt.figure(figsize=(10, 4))
plt.plot(
    x,
    (final_model.params[0] + final_model.params[1] * np.sqrt(x)),
    color="C1",
    label="prediction",
    lw=4,
)

plt.legend()

sns.scatterplot(
    data=plt_df, x="credit_limit", y="spend", palette="gray", hue="wage_group"
)

4.7 더미변수를 활용한 회귀분석

4.7.1 조건부 무작위 실험

risk_data_rnd = pd.read_csv("../data/risk_data_rnd.csv")
risk_data_rnd.head()

	wage	educ	exper	married	credit_score1	credit_score2	credit_score1_buckets	credit_limit	default
0	890.0	11	16	1	490.0	500.0	400	5400.0	0
1	670.0	11	7	1	196.0	481.0	200	3800.0	0
2	1220.0	14	9	1	392.0	611.0	400	5800.0	0
3	1210.0	15	8	1	627.0	519.0	600	6500.0	0
4	900.0	16	1	1	275.0	519.0	200	2100.0	0

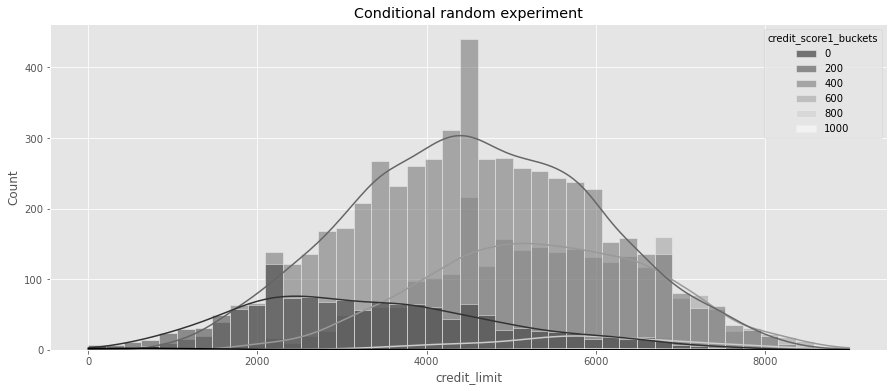

plt.figure(figsize=(15, 6))
sns.histplot(
    data=risk_data_rnd,
    x="credit_limit",
    hue="credit_score1_buckets",
    kde=True,
    palette="gray",
)
plt.title("Conditional random experiment")

Text(0.5, 1.0, 'Conditional random experiment')

4.7.2 더미변수

model = smf.ols("default ~ credit_limit", data=risk_data_rnd).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.1369	0.009	15.081	0.000	0.119	0.155
credit_limit	-9.344e-06	1.85e-06	-5.048	0.000	-1.3e-05	-5.72e-06

pd.set_option("display.max_columns", 9)

risk_data_dummies = risk_data_rnd.join(
    pd.get_dummies(risk_data_rnd["credit_score1_buckets"], prefix="sb", drop_first=True)
)
risk_data_dummies.head()

	wage	educ	exper	married	...	sb_400	sb_600	sb_800	sb_1000
0	890.0	11	16	1	...	1	0	0	0
1	670.0	11	7	1	...	0	0	0	0
2	1220.0	14	9	1	...	1	0	0	0
3	1210.0	15	8	1	...	0	1	0	0
4	900.0	16	1	1	...	0	0	0	0

5 rows × 14 columns

model = smf.ols(
    "default ~ credit_limit + sb_200+sb_400+sb_600+sb_800+sb_1000",
    data=risk_data_dummies,
).fit()

model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.2253	0.056	4.000	0.000	0.115	0.336
credit_limit	4.652e-06	2.02e-06	2.305	0.021	6.97e-07	8.61e-06
sb_200	-0.0559	0.057	-0.981	0.327	-0.168	0.056
sb_400	-0.1442	0.057	-2.538	0.011	-0.256	-0.033
sb_600	-0.2148	0.057	-3.756	0.000	-0.327	-0.103
sb_800	-0.2489	0.060	-4.181	0.000	-0.366	-0.132
sb_1000	-0.2541	0.094	-2.715	0.007	-0.438	-0.071

model = smf.ols(
    "default ~ credit_limit + C(credit_score1_buckets)", data=risk_data_rnd
).fit()

model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.2253	0.056	4.000	0.000	0.115	0.336
C(credit_score1_buckets)[T.200]	-0.0559	0.057	-0.981	0.327	-0.168	0.056
C(credit_score1_buckets)[T.400]	-0.1442	0.057	-2.538	0.011	-0.256	-0.033
C(credit_score1_buckets)[T.600]	-0.2148	0.057	-3.756	0.000	-0.327	-0.103
C(credit_score1_buckets)[T.800]	-0.2489	0.060	-4.181	0.000	-0.366	-0.132
C(credit_score1_buckets)[T.1000]	-0.2541	0.094	-2.715	0.007	-0.438	-0.071
credit_limit	4.652e-06	2.02e-06	2.305	0.021	6.97e-07	8.61e-06

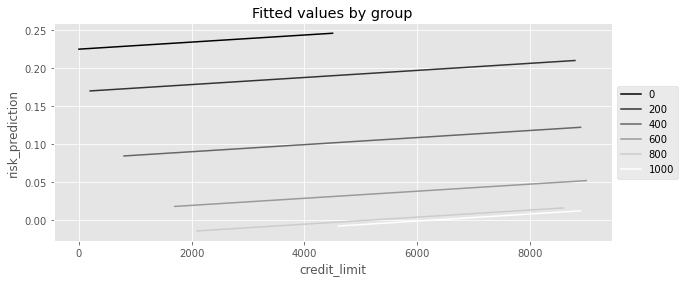

plt_df = (
    risk_data_rnd.assign(risk_prediction=model.fittedvalues)
    .groupby(["credit_limit", "credit_score1_buckets"])["risk_prediction"]
    .mean()
    .reset_index()
)

plt.figure(figsize=(10, 4))
sns.lineplot(
    data=plt_df,
    x="credit_limit",
    y="risk_prediction",
    hue="credit_score1_buckets",
    palette="gray",
)
plt.title("Fitted values by group")
plt.legend(loc="center left", bbox_to_anchor=(1, 0.5))

4.7.3 포화회귀모델

def regress(df, t, y):
    return smf.ols(f"{y}~{t}", data=df).fit().params[t]


effect_by_group = risk_data_rnd.groupby("credit_score1_buckets").apply(
    regress, y="default", t="credit_limit"
)
effect_by_group

credit_score1_buckets
0      -0.000071
200     0.000007
400     0.000005
600     0.000003
800     0.000002
1000    0.000000
dtype: float64

group_size = risk_data_rnd.groupby("credit_score1_buckets").size()
ate = (effect_by_group * group_size).sum() / group_size.sum()
ate

4.490445628748722e-06

model = smf.ols(
    "default ~ credit_limit * C(credit_score1_buckets)", data=risk_data_rnd
).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.3137	0.077	4.086	0.000	0.163	0.464
C(credit_score1_buckets)[T.200]	-0.1521	0.079	-1.926	0.054	-0.307	0.003
C(credit_score1_buckets)[T.400]	-0.2339	0.078	-3.005	0.003	-0.386	-0.081
C(credit_score1_buckets)[T.600]	-0.2957	0.080	-3.690	0.000	-0.453	-0.139
C(credit_score1_buckets)[T.800]	-0.3227	0.111	-2.919	0.004	-0.539	-0.106
C(credit_score1_buckets)[T.1000]	-0.3137	0.428	-0.733	0.464	-1.153	0.525
credit_limit	-7.072e-05	4.45e-05	-1.588	0.112	-0.000	1.66e-05
credit_limit:C(credit_score1_buckets)[T.200]	7.769e-05	4.48e-05	1.734	0.083	-1.01e-05	0.000
credit_limit:C(credit_score1_buckets)[T.400]	7.565e-05	4.46e-05	1.696	0.090	-1.18e-05	0.000
credit_limit:C(credit_score1_buckets)[T.600]	7.398e-05	4.47e-05	1.655	0.098	-1.37e-05	0.000
credit_limit:C(credit_score1_buckets)[T.800]	7.286e-05	4.65e-05	1.567	0.117	-1.83e-05	0.000
credit_limit:C(credit_score1_buckets)[T.1000]	7.072e-05	8.05e-05	0.878	0.380	-8.71e-05	0.000

(
    model.params[model.params.index.str.contains("credit_limit:")]
    + model.params["credit_limit"]
).round(9)

credit_limit:C(credit_score1_buckets)[T.200]     0.000007
credit_limit:C(credit_score1_buckets)[T.400]     0.000005
credit_limit:C(credit_score1_buckets)[T.600]     0.000003
credit_limit:C(credit_score1_buckets)[T.800]     0.000002
credit_limit:C(credit_score1_buckets)[T.1000]    0.000000
dtype: float64

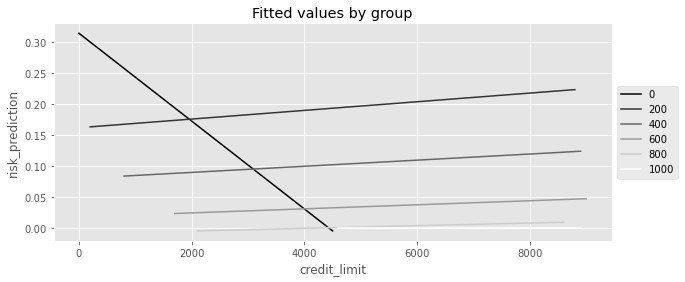

plt_df = (
    risk_data_rnd.assign(risk_prediction=model.fittedvalues)
    .groupby(["credit_limit", "credit_score1_buckets"])["risk_prediction"]
    .mean()
    .reset_index()
)

plt.figure(figsize=(10, 4))
sns.lineplot(
    data=plt_df,
    x="credit_limit",
    y="risk_prediction",
    hue="credit_score1_buckets",
    palette="gray",
)
plt.title("Fitted values by group")
plt.legend(loc="center left", bbox_to_anchor=(1, 0.5))

4.7.4 분산의 가중평균과 회귀분석

np.random.seed(123)

# std(t)=1
t1 = np.random.normal(0, 1, size=1000)
df1 = pd.DataFrame(
    dict(
        t=t1,
        y=1 * t1,  # ATE of 1
        g=1,
    )
)

# std(t)=2
t2 = np.random.normal(0, 2, size=500)
df2 = pd.DataFrame(
    dict(
        t=t2,
        y=2 * t2,  # ATE of 2
        g=2,
    )
)

df = pd.concat([df1, df2])
df.head()

	t	y	g
0	-1.085631	-1.085631	1
1	0.997345	0.997345	1
2	0.282978	0.282978	1
3	-1.506295	-1.506295	1
4	-0.578600	-0.578600	1

effect_by_group = df.groupby("g").apply(regress, y="y", t="t")
ate = (effect_by_group * df.groupby("g").size()).sum() / df.groupby("g").size().sum()
ate

1.333333333333333

model = smf.ols("y ~ t + C(g)", data=df).fit()
model.params

Intercept    0.024758
C(g)[T.2]    0.019860
t            1.625775
dtype: float64

4.7.5 평균 제거와 고정효과

model_deb = smf.ols("credit_limit ~ C(credit_score1_buckets)", data=risk_data_rnd).fit()
model_deb.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	1173.0769	278.994	4.205	0.000	626.193	1719.961
C(credit_score1_buckets)[T.200]	2195.4337	281.554	7.798	0.000	1643.530	2747.337
C(credit_score1_buckets)[T.400]	3402.3796	279.642	12.167	0.000	2854.224	3950.535
C(credit_score1_buckets)[T.600]	4191.3235	280.345	14.951	0.000	3641.790	4740.857
C(credit_score1_buckets)[T.800]	4639.5105	291.400	15.921	0.000	4068.309	5210.712
C(credit_score1_buckets)[T.1000]	5006.9231	461.255	10.855	0.000	4102.771	5911.076

risk_data_rnd.groupby("credit_score1_buckets")["credit_limit"].mean()

credit_score1_buckets
0       1173.076923
200     3368.510638
400     4575.456498
600     5364.400448
800     5812.587413
1000    6180.000000
Name: credit_limit, dtype: float64

risk_data_fe = risk_data_rnd.assign(
    credit_limit_avg=lambda d: d.groupby("credit_score1_buckets")[
        "credit_limit"
    ].transform("mean")
)

model = smf.ols("default ~ I(credit_limit-credit_limit_avg)", data=risk_data_fe).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.0935	0.003	32.121	0.000	0.088	0.099
I(credit_limit - credit_limit_avg)	4.652e-06	2.05e-06	2.273	0.023	6.4e-07	8.66e-06

model = smf.ols("default ~ credit_limit + credit_limit_avg", data=risk_data_fe).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.4325	0.020	21.418	0.000	0.393	0.472
credit_limit	4.652e-06	2.02e-06	2.305	0.021	6.96e-07	8.61e-06
credit_limit_avg	-7.763e-05	4.75e-06	-16.334	0.000	-8.69e-05	-6.83e-05

4.8 누락 변수 편향

g = gr.Digraph(graph_attr={"rankdir": "LR"})


g.edge("Lines", "Default")
(g.edge("Wage", "Default"),)
g.edge("Wage", "Lines")


g

short_model = smf.ols("default ~ credit_limit", data=risk_data).fit()
short_model.params["credit_limit"]

-2.401961992596885e-05

long_model = smf.ols("default ~ credit_limit + wage", data=risk_data).fit()

omitted_model = smf.ols("wage ~ credit_limit", data=risk_data).fit()

(
    long_model.params["credit_limit"]
    + long_model.params["wage"] * omitted_model.params["credit_limit"]
)

-2.4019619925968762e-05

4.9 중립 통제변수

g = gr.Digraph(graph_attr={"rankdir": "LR"})

(g.edge("credit_score1_buckets", "Default"),)
(g.edge("credit_score1_buckets", "Lines"),)
(g.edge("credit_score2", "Default"),)
g.edge("Lines", "Default")

g

formula = "default~credit_limit+C(credit_score1_buckets)+credit_score2"
model = smf.ols(formula, data=risk_data_rnd).fit()
model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.5576	0.055	10.132	0.000	0.450	0.665
C(credit_score1_buckets)[T.200]	-0.0387	0.055	-0.710	0.478	-0.146	0.068
C(credit_score1_buckets)[T.400]	-0.1032	0.054	-1.898	0.058	-0.210	0.003
C(credit_score1_buckets)[T.600]	-0.1410	0.055	-2.574	0.010	-0.248	-0.034
C(credit_score1_buckets)[T.800]	-0.1161	0.057	-2.031	0.042	-0.228	-0.004
C(credit_score1_buckets)[T.1000]	-0.0430	0.090	-0.479	0.632	-0.219	0.133
credit_limit	4.928e-06	1.93e-06	2.551	0.011	1.14e-06	8.71e-06
credit_score2	-0.0007	2.34e-05	-30.225	0.000	-0.001	-0.001

4.9.1 잡음 유발 통제변수

g = gr.Digraph(graph_attr={"rankdir": "LR"})


(g.edge("credit_score1_buckets", "Lines"),)
(g.edge("U", "Spend"),)
g.edge("Lines", "Spend")

g

spend_data_rnd = pd.read_csv("data/spend_data_rnd.csv")

model = smf.ols("spend ~ np.sqrt(credit_limit)", data=spend_data_rnd).fit()

model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	2153.2154	218.600	9.850	0.000	1723.723	2582.708
np.sqrt(credit_limit)	16.2915	2.988	5.452	0.000	10.420	22.163

model = smf.ols(
    "spend~np.sqrt(credit_limit)+C(credit_score1_buckets)", data=spend_data_rnd
).fit()

model.summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	2367.4867	556.273	4.256	0.000	1274.528	3460.446
C(credit_score1_buckets)[T.200]	-144.7921	591.613	-0.245	0.807	-1307.185	1017.601
C(credit_score1_buckets)[T.400]	-118.3923	565.364	-0.209	0.834	-1229.211	992.427
C(credit_score1_buckets)[T.600]	-111.5738	570.471	-0.196	0.845	-1232.429	1009.281
C(credit_score1_buckets)[T.800]	-89.7366	574.645	-0.156	0.876	-1218.791	1039.318
C(credit_score1_buckets)[T.1000]	363.8990	608.014	0.599	0.550	-830.720	1558.518
np.sqrt(credit_limit)	14.5953	3.523	4.142	0.000	7.673	21.518

4.9.2 특성 선택: 편향-분산 트레이드오프

g = gr.Digraph(graph_attr={"rankdir": "LR"})


(g.edge("X1", "T", penwidth="5"),)
(g.edge("X2", "T", penwidth="3"),)
(g.edge("X3", "T", penwidth="1"),)

(g.edge("X1", "Y", penwidth="1"),)
(g.edge("X2", "Y", penwidth="3"),)
(g.edge("X3", "Y", penwidth="5"),)

(g.edge("T", "Y"),)

g

np.random.seed(123)

n = 100
(x1, x2, x3) = (np.random.normal(0, 1, n) for _ in range(3))
t = np.random.normal(10 * x1 + 5 * x2 + x3)

# ate = 0.05
y = np.random.normal(0.05 * t + x1 + 5 * x2 + 10 * x3, 5)
df = pd.DataFrame(dict(y=y, t=t, x1=x1, x2=x2, x3=x3))

smf.ols("y~t+x1+x2+x3", data=df).fit().summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.2707	0.527	0.514	0.608	-0.775	1.316
t	0.8664	0.607	1.427	0.157	-0.339	2.072
x1	-7.0628	6.038	-1.170	0.245	-19.049	4.923
x2	0.0143	3.128	0.005	0.996	-6.195	6.224
x3	9.6292	0.887	10.861	0.000	7.869	11.389

smf.ols("y~t+x2+x3", data=df).fit().summary().tables[1]

	coef	std err	t	P>|t|	[0.025	0.975]
Intercept	0.1889	0.523	0.361	0.719	-0.849	1.227
t	0.1585	0.046	3.410	0.001	0.066	0.251
x2	3.6095	0.582	6.197	0.000	2.453	4.766
x3	10.4549	0.537	19.453	0.000	9.388	11.522

4.10 요약

import graphviz as gr

g = gr.Digraph(format="png")

g.edge("Parent's Income", "Private")
g.edge("SAT", "Private")
g.edge("Ambition", "Private")
g.edge("...", "Private")

g.edge("Parent's Income", "Income")
g.edge("SAT", "Income")
g.edge("Ambition", "Income")
g.edge("...", "Income")

g.edge("Private", "Income")

g
